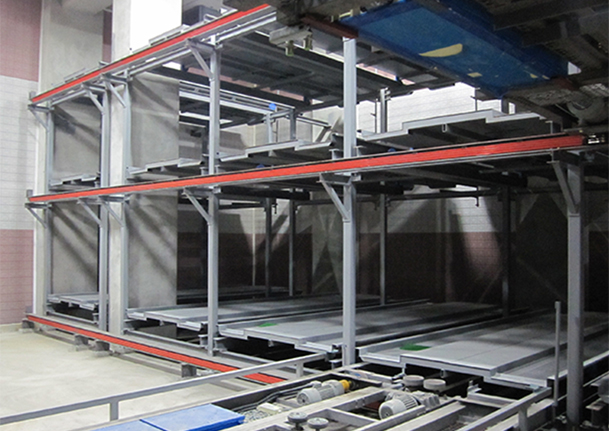

LMT-SYSTEM

The lift carries the vehicle and moves it vertically, while the floor-level wagons communicate with each other to park the vehicle in the
designated storage unit.
Depending on the layout, it is classified into longitudinal type and lateral type. The LMG-SYSTEM is suitable for medium to large buildings
as it allows for fast entry and exit.

  • Utilization of underground space in medium and large-sized buildings
  • Can be configured with 2 to 6 levels
평면왕복방식 LMT-SYSTEM
  • Minimization of entry and exit times through
    a time-based selective parking and
    reservation-based exit program

  • Ensuring perfect operation, safety, and
    convenience through a dual control system
    using computers

  • Maximization of the efficiency of both underground and above-ground spaces with various models

  • Management of all systems in the country
    a MODEM system, ensuring comprehensive
    pre- and post-maintenance as well as flawless
    after-sales service

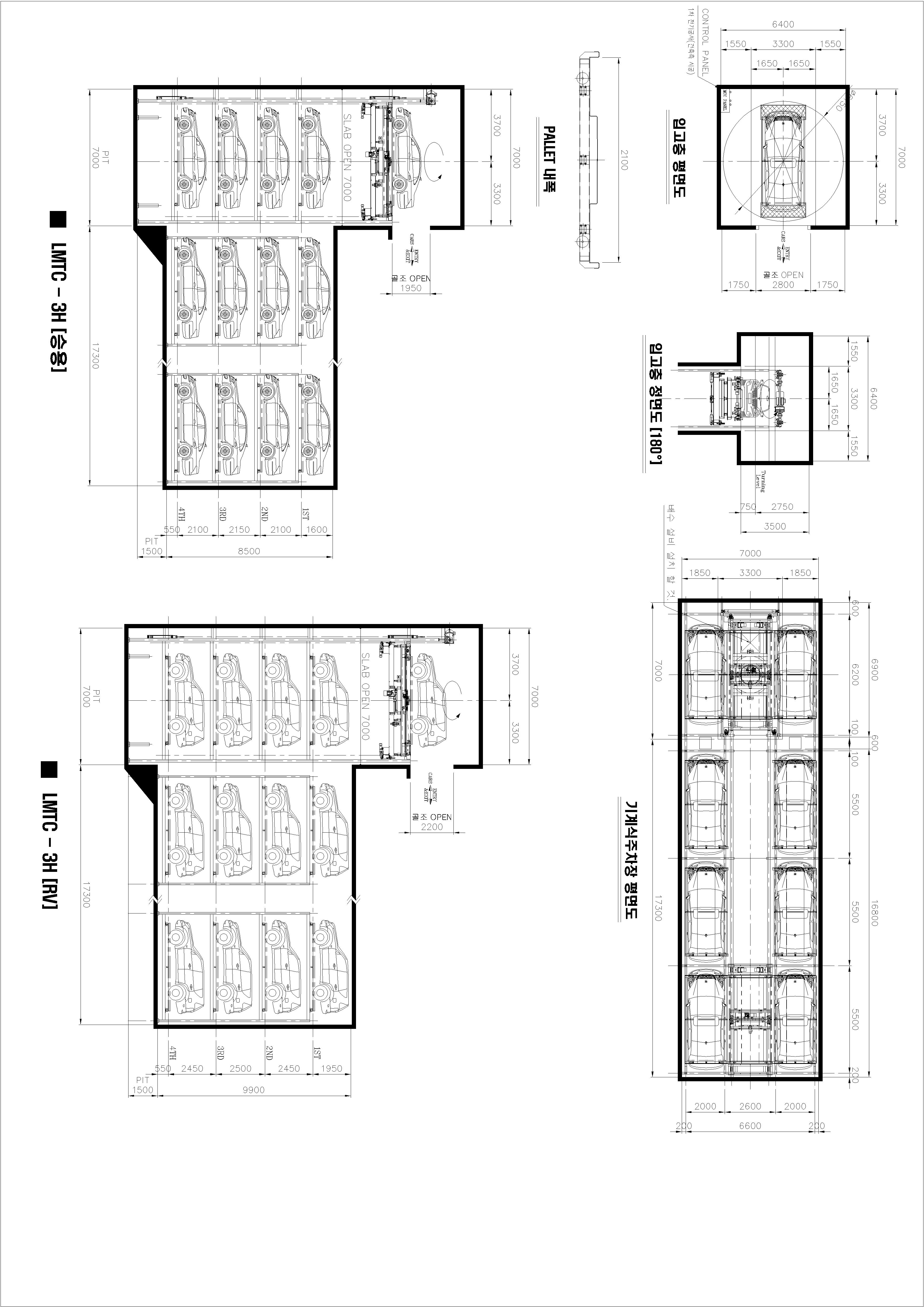

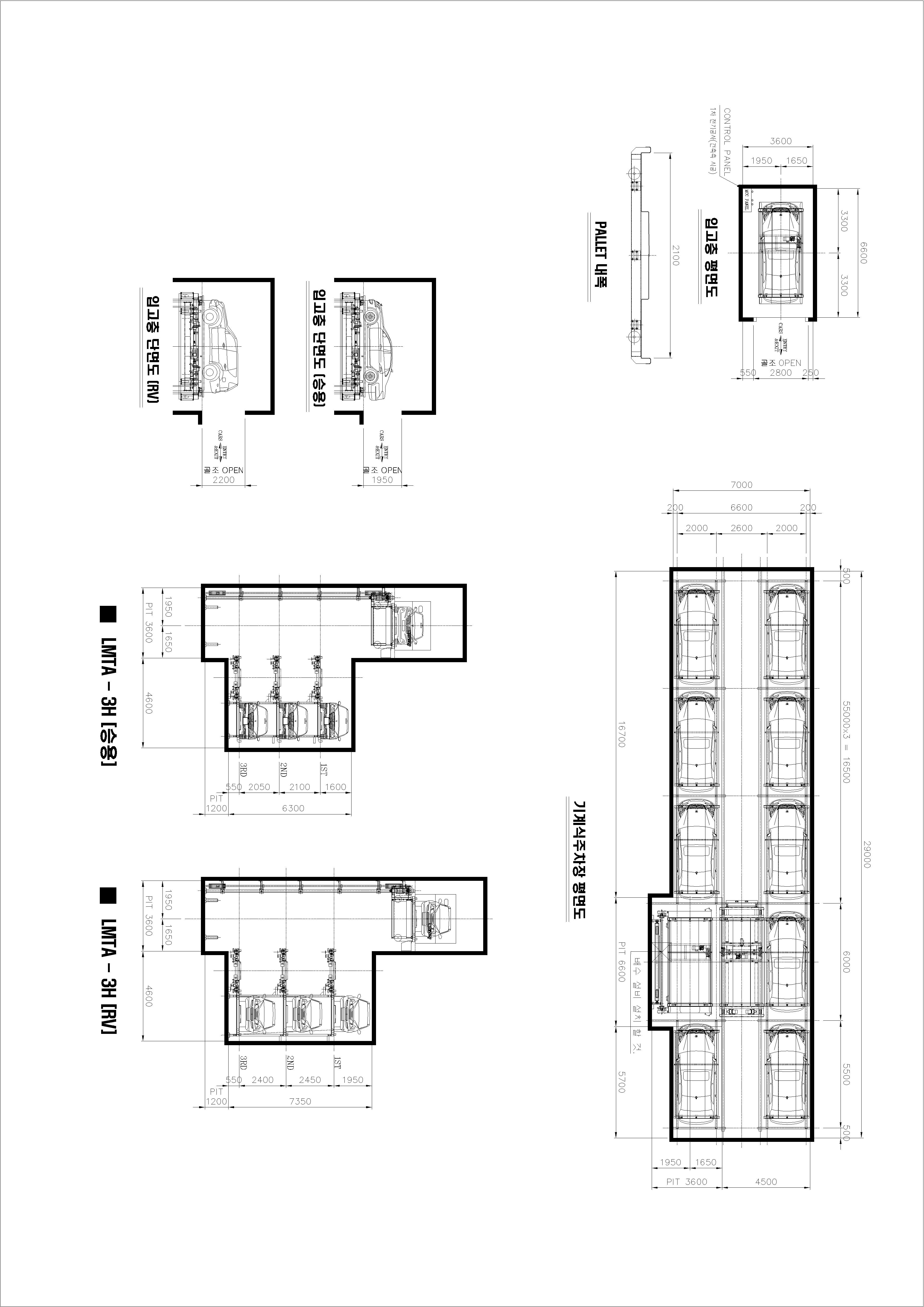

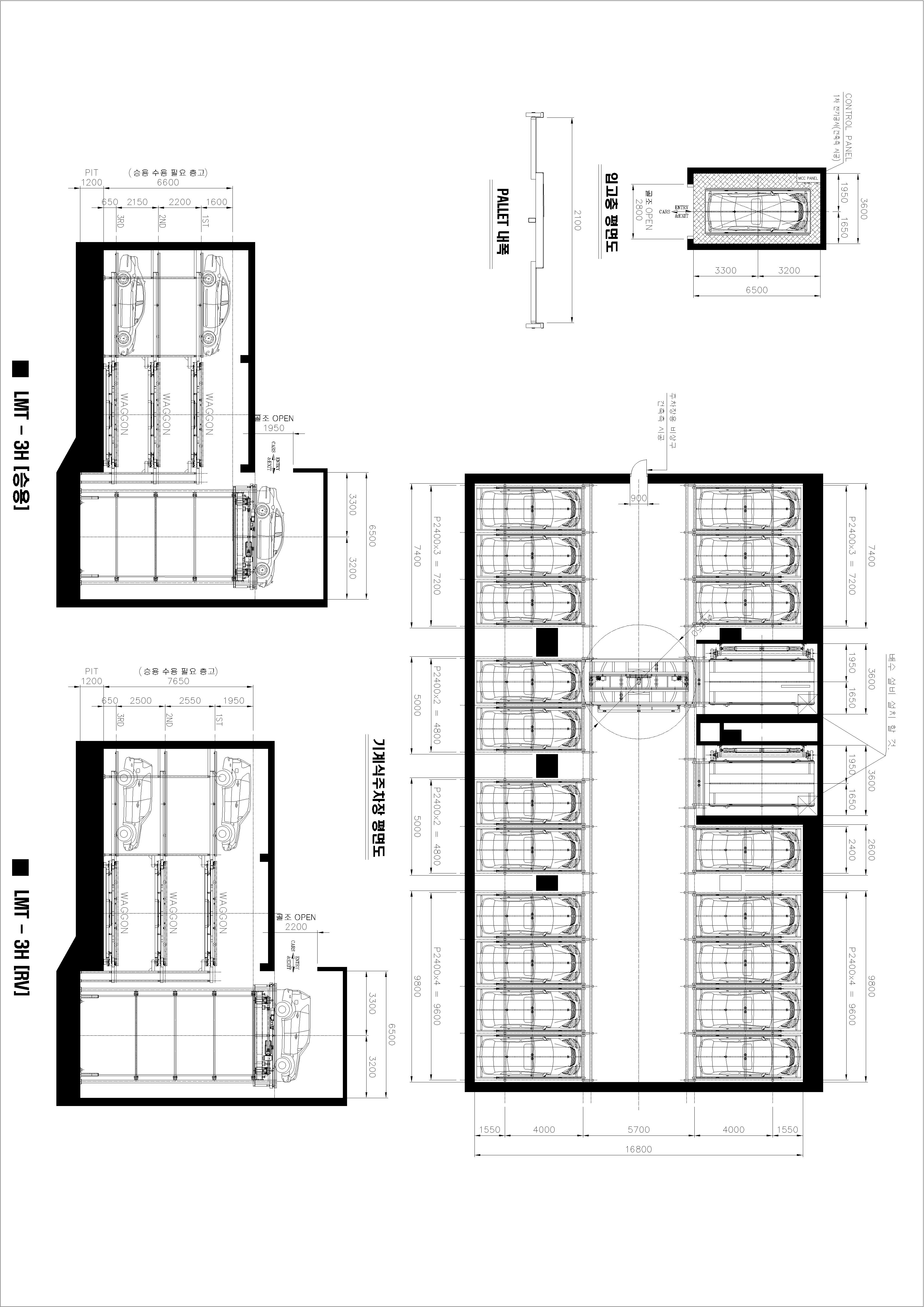

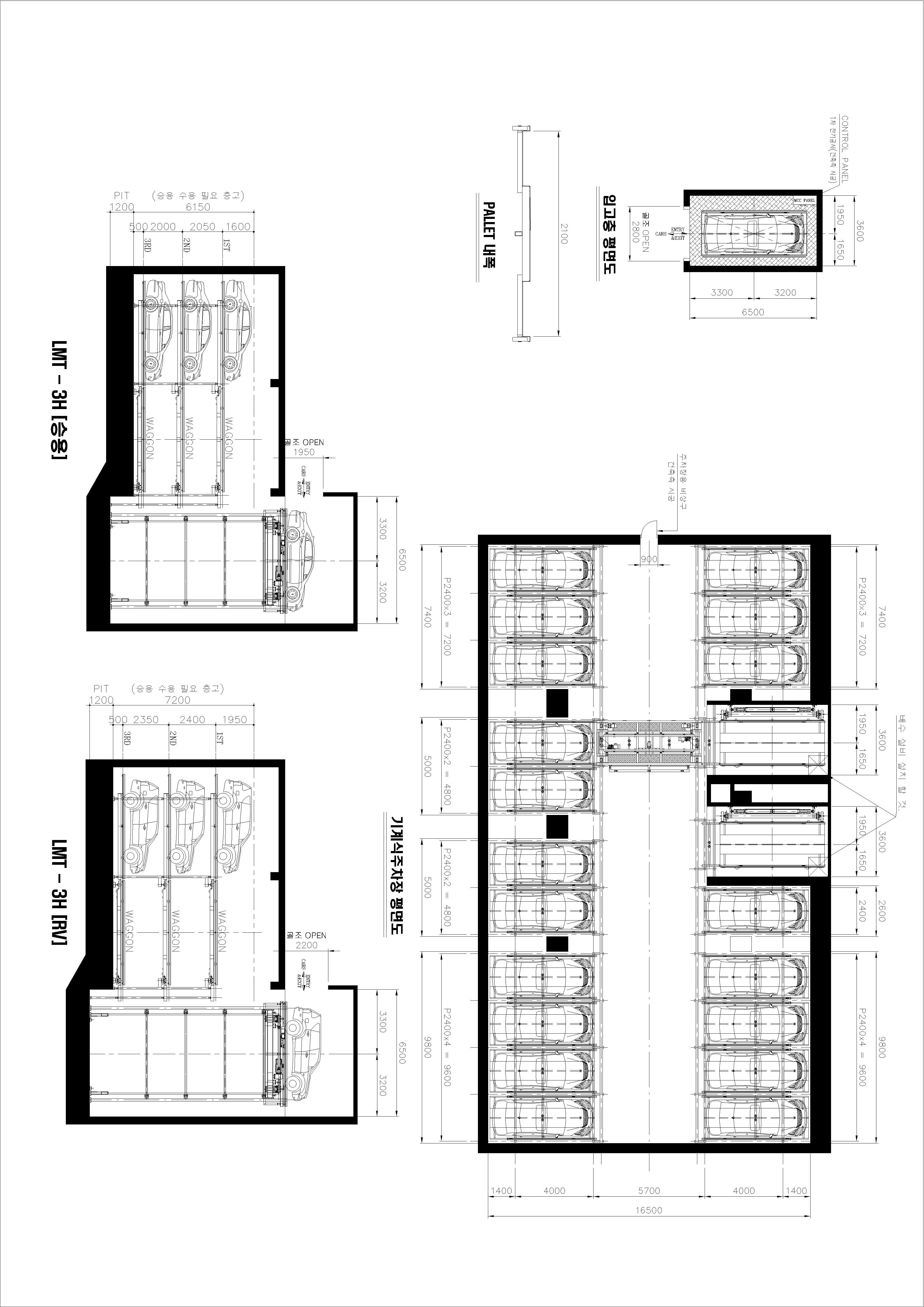

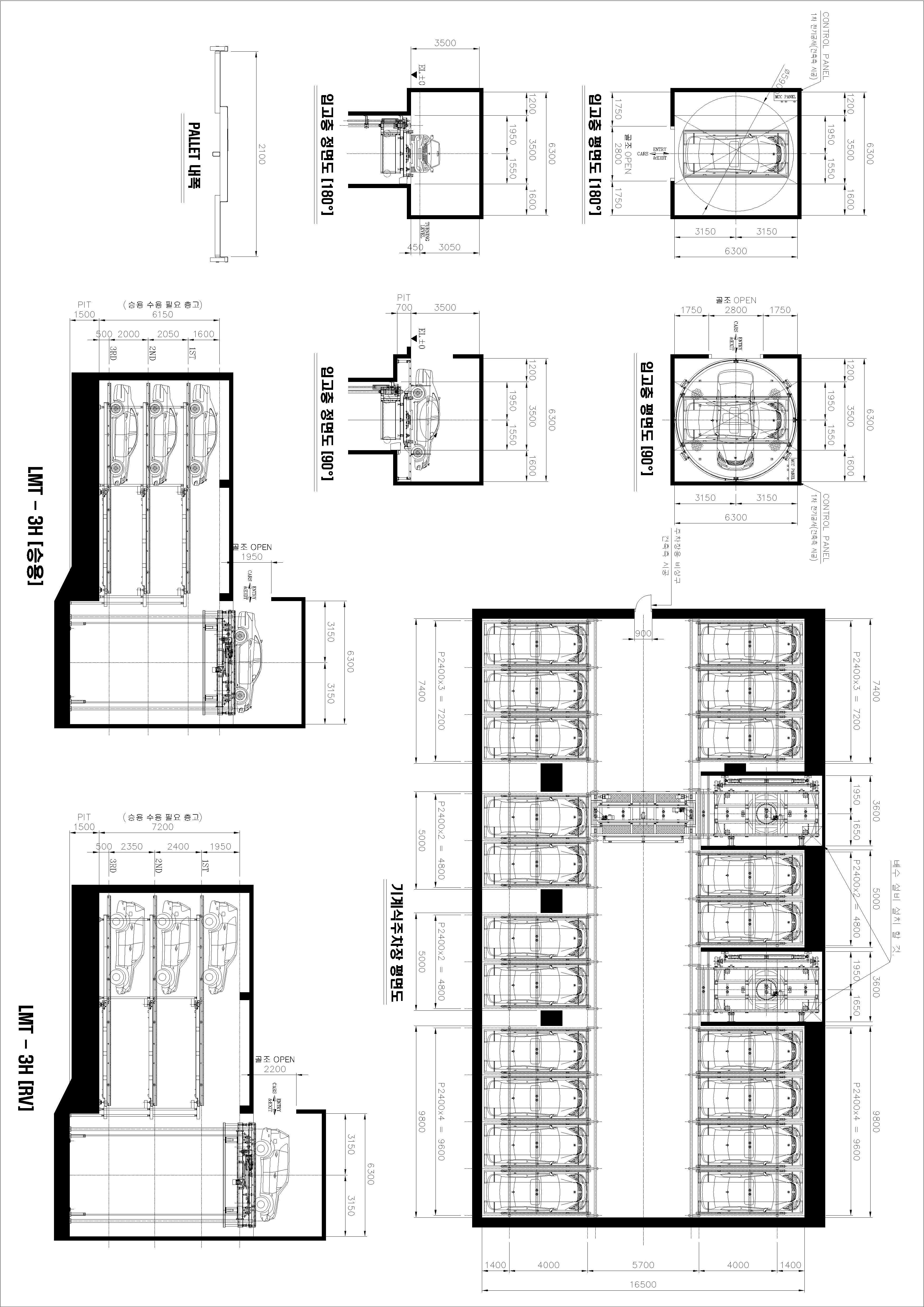

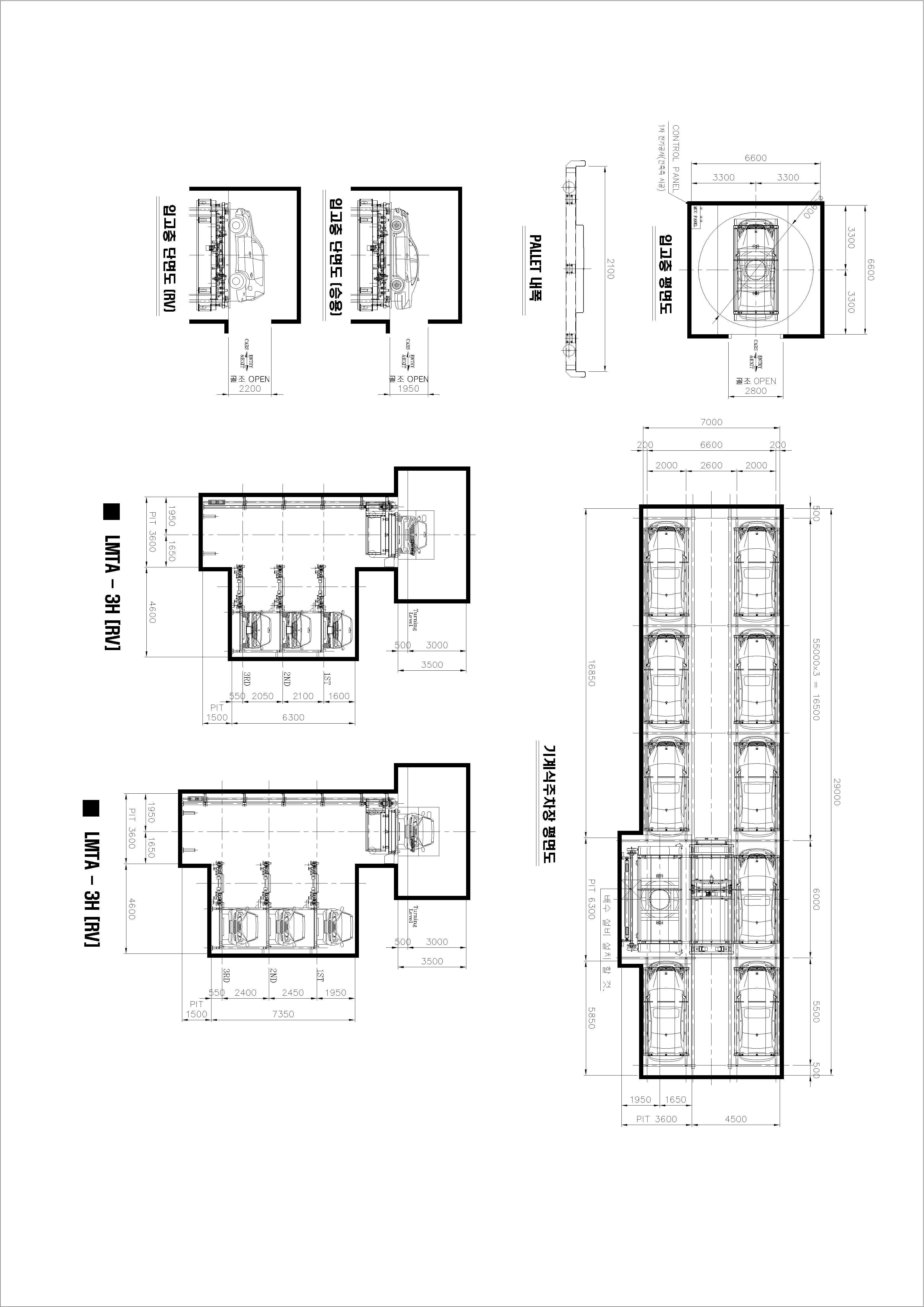

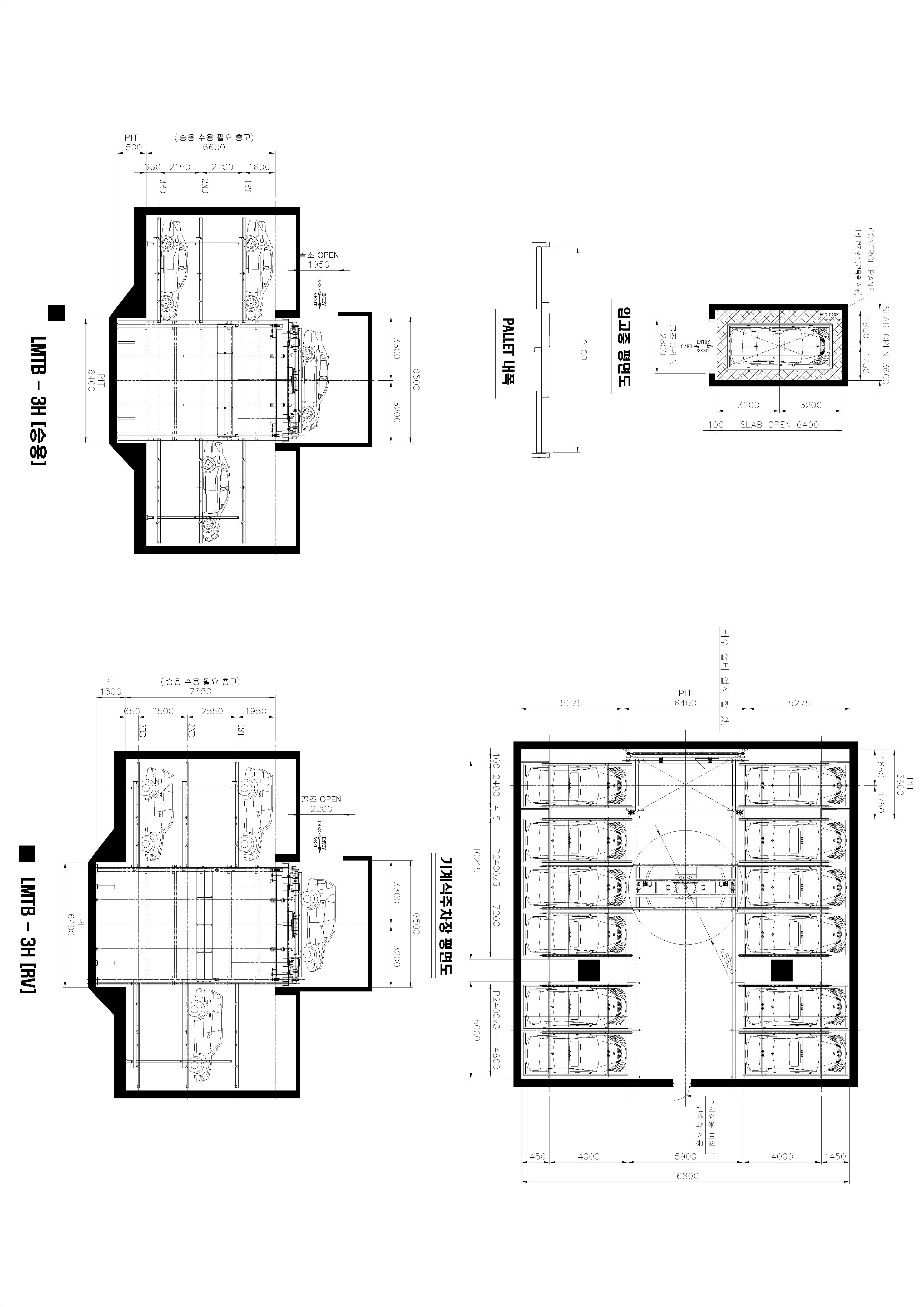

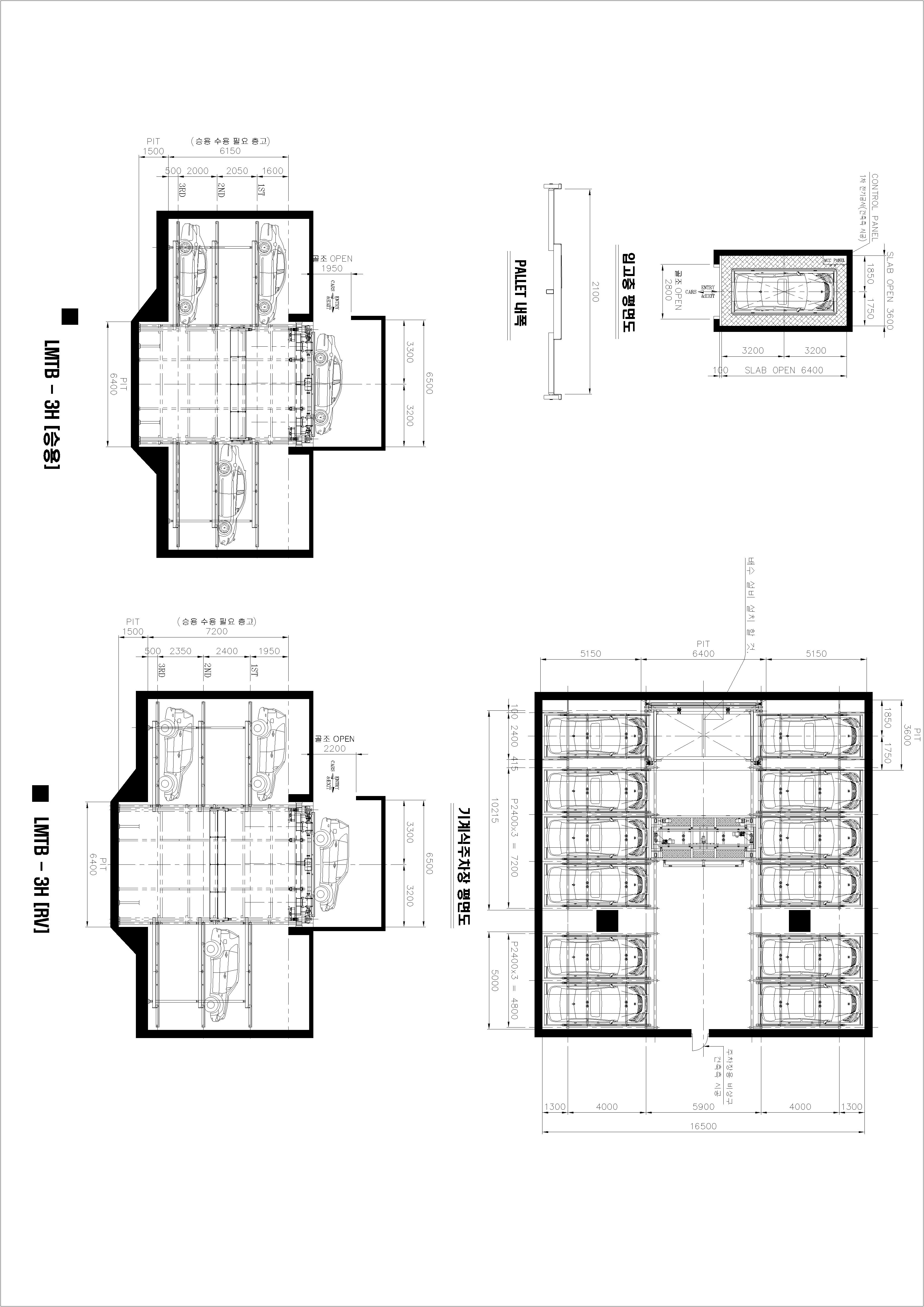

Standard Specifications for LMT-SYSTEM

Building-Integrated Types

  • Longitudinal Standard Type
  • Longitudinal WIT Type
  • Longitudinal IT Type
  • Integrated Longitudinal Standard Type
  • Integrated Longitudinal WI Type
  • Lateral Standard Type
  • Lateral IT Type
  • Integrated Lateral Standard Type
  • Integrated Lateral IT Type
  • External Turntable
