LV-SYSTEM

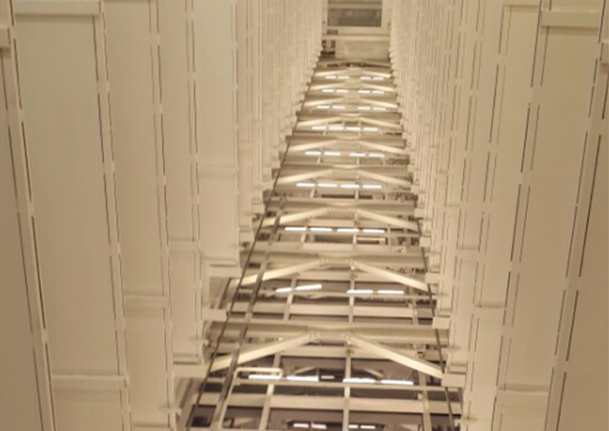

Commonly known as a parking tower, LV-System uses a lift to carry the vehicle and move it vertically, pushing it into storage units on the left or right for parking. Depending on the entry and exit locations, it is classified into lower-entry type and mid-entry type, and based on the installation method, it is categorized into building-integrated or standalone tower types.
The LV-SYSTEM is suitable for medium to large buildings as it allows for fast entry and exit.

  • Medium and large-sized buildings and parking-only buildings
  • Standalone tower types / Building-Integrated Types
엘리베이터방식 LV-SYSTEM
  • Minimization of entry and exit times through
    a time-based selective parking and
    reservation-based exit program

  • Ensuring perfect operation, safety, and
    convenience through a dual control system
    using computers

  • Maximization of the efficiency of both underground and above-ground spaces with various models

  • Management of all systems in the country
    a MODEM system, ensuring comprehensive
    pre- and post-maintenance as well as flawless
    after-sales service

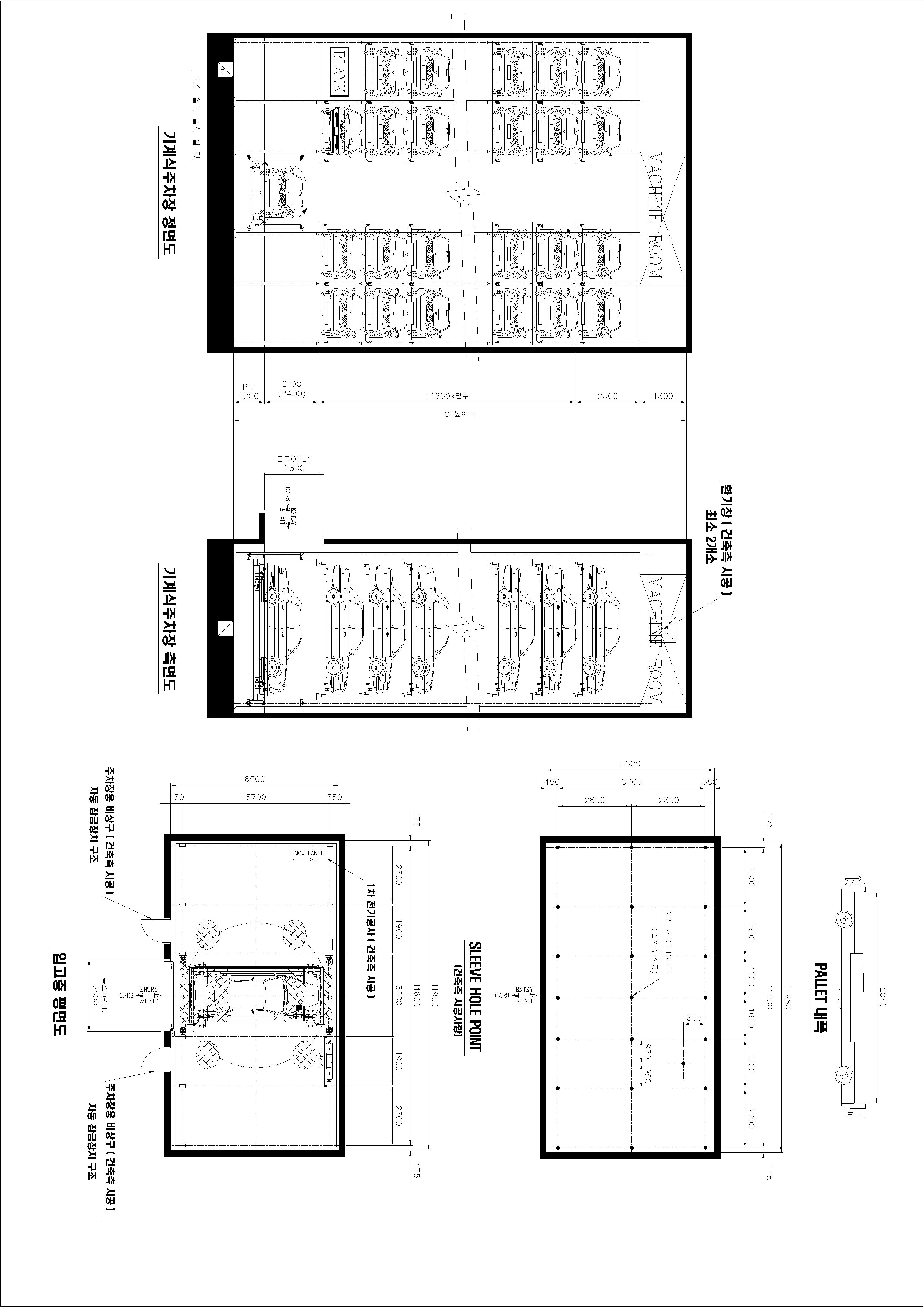

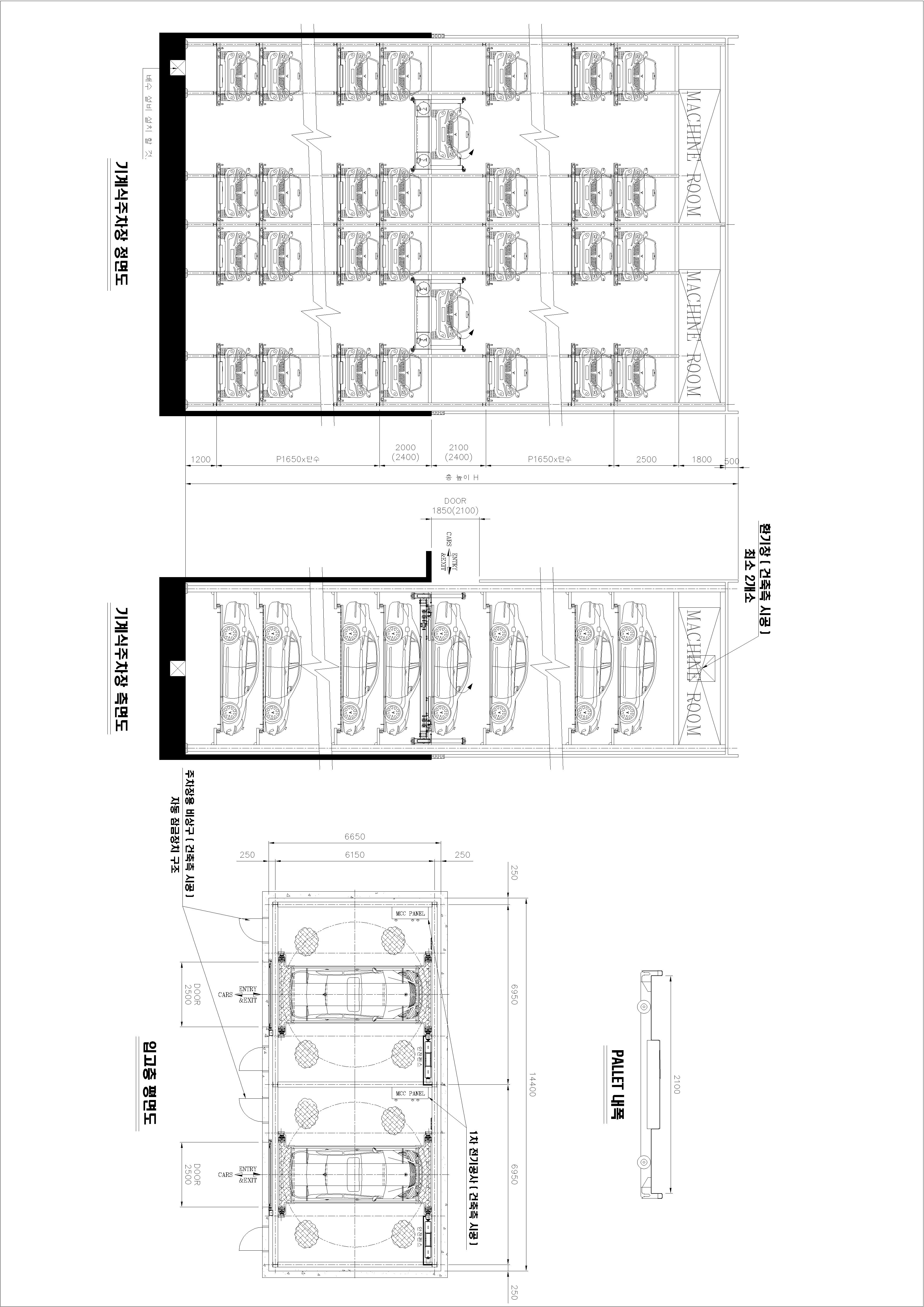

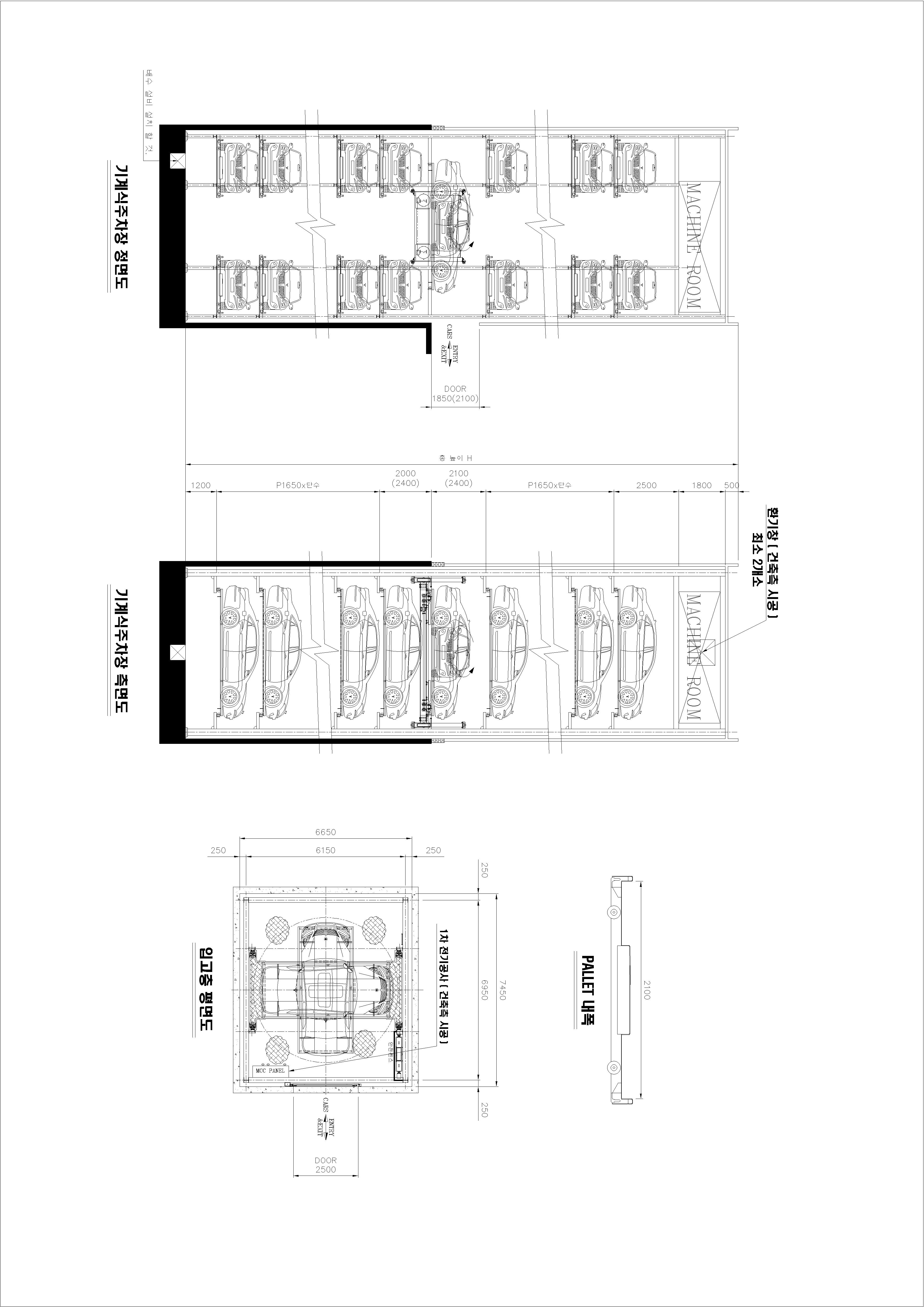

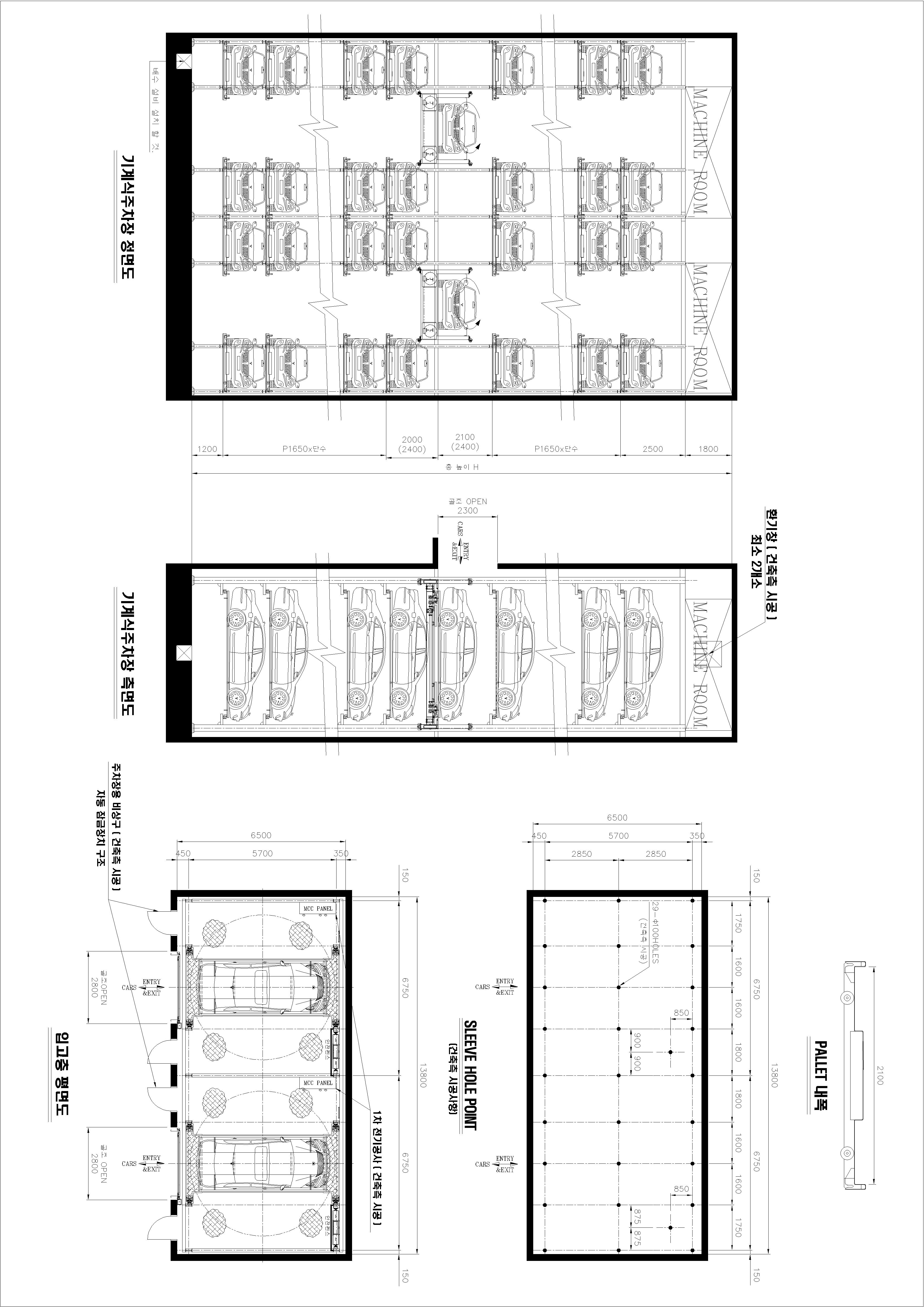

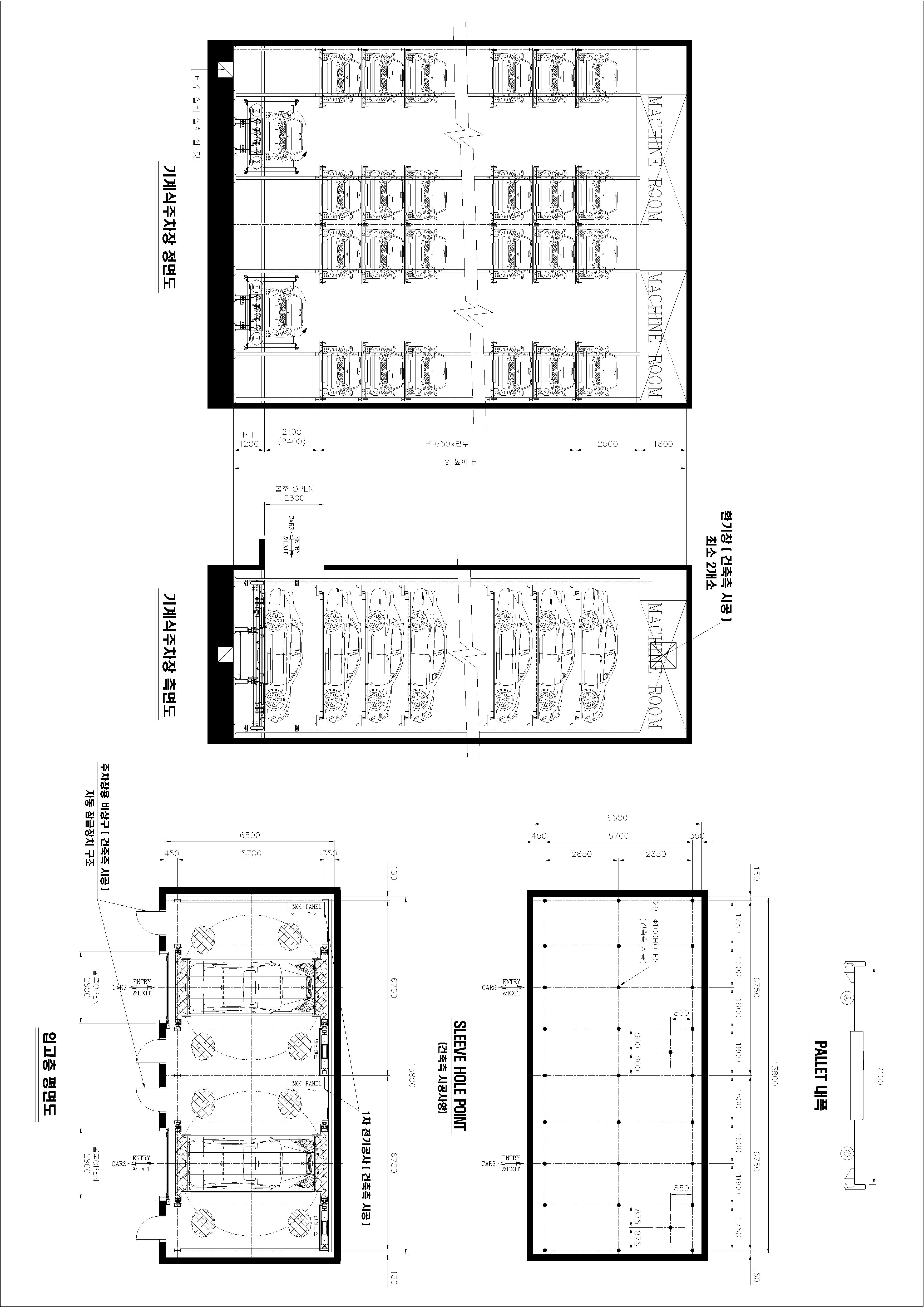

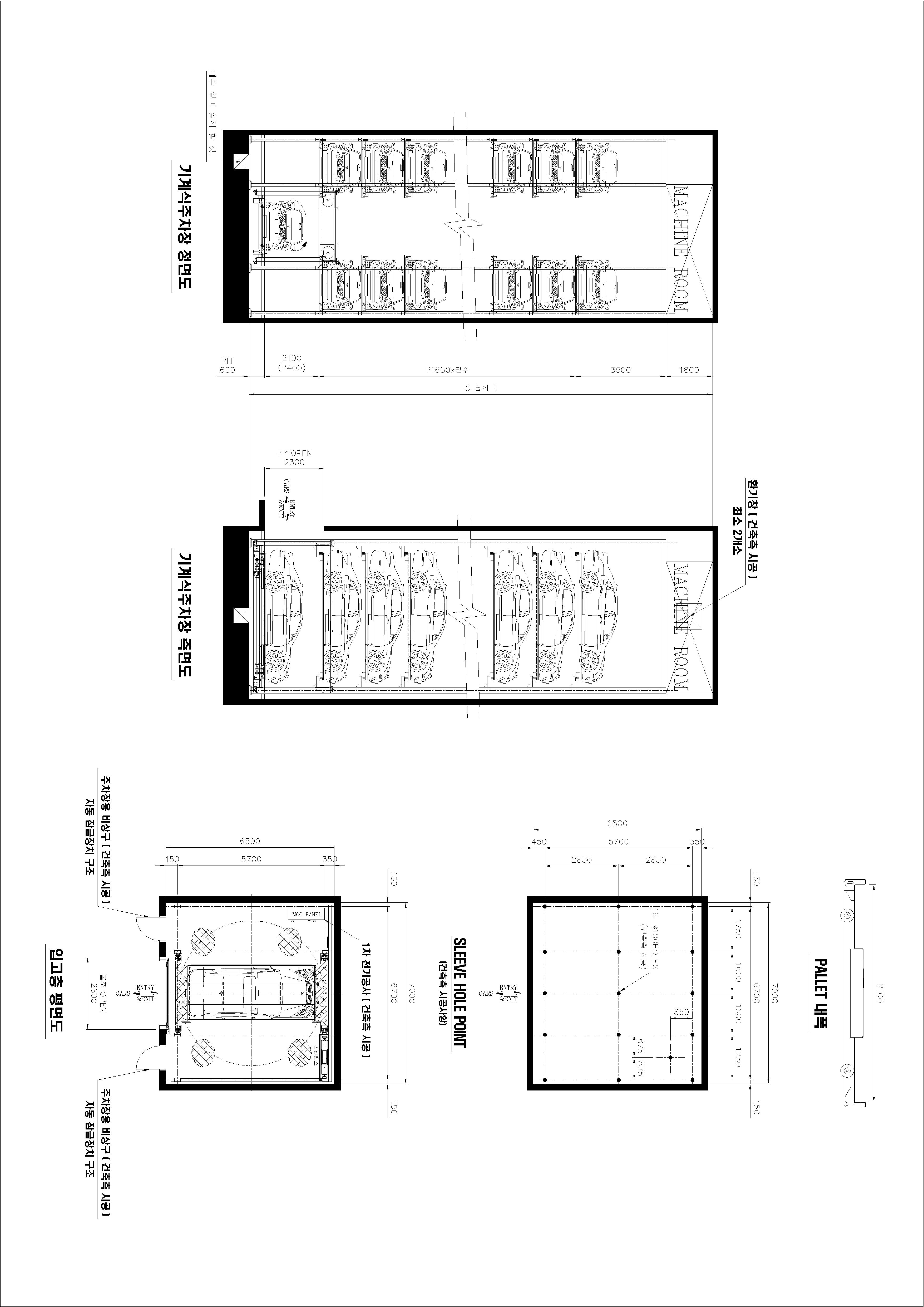

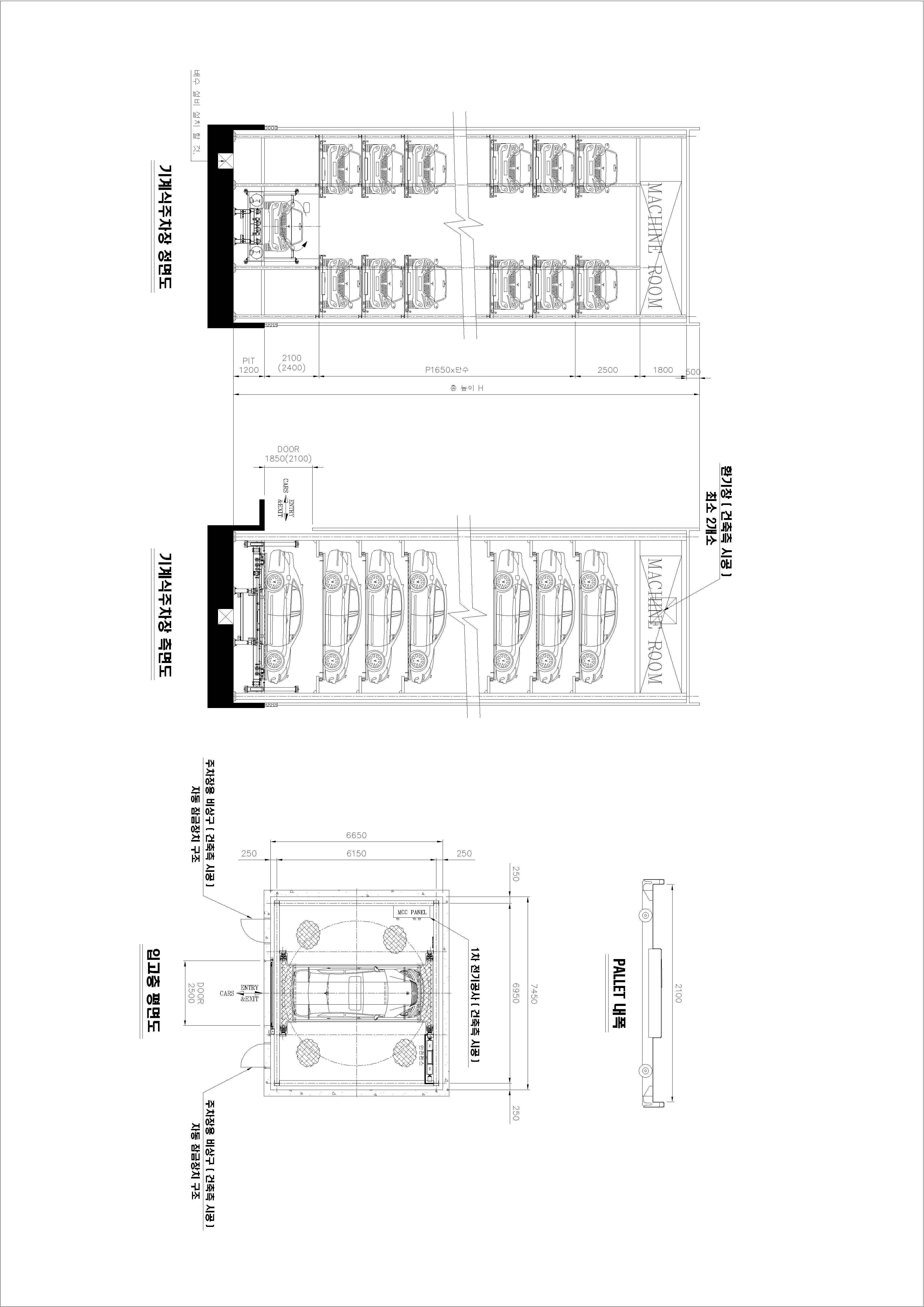

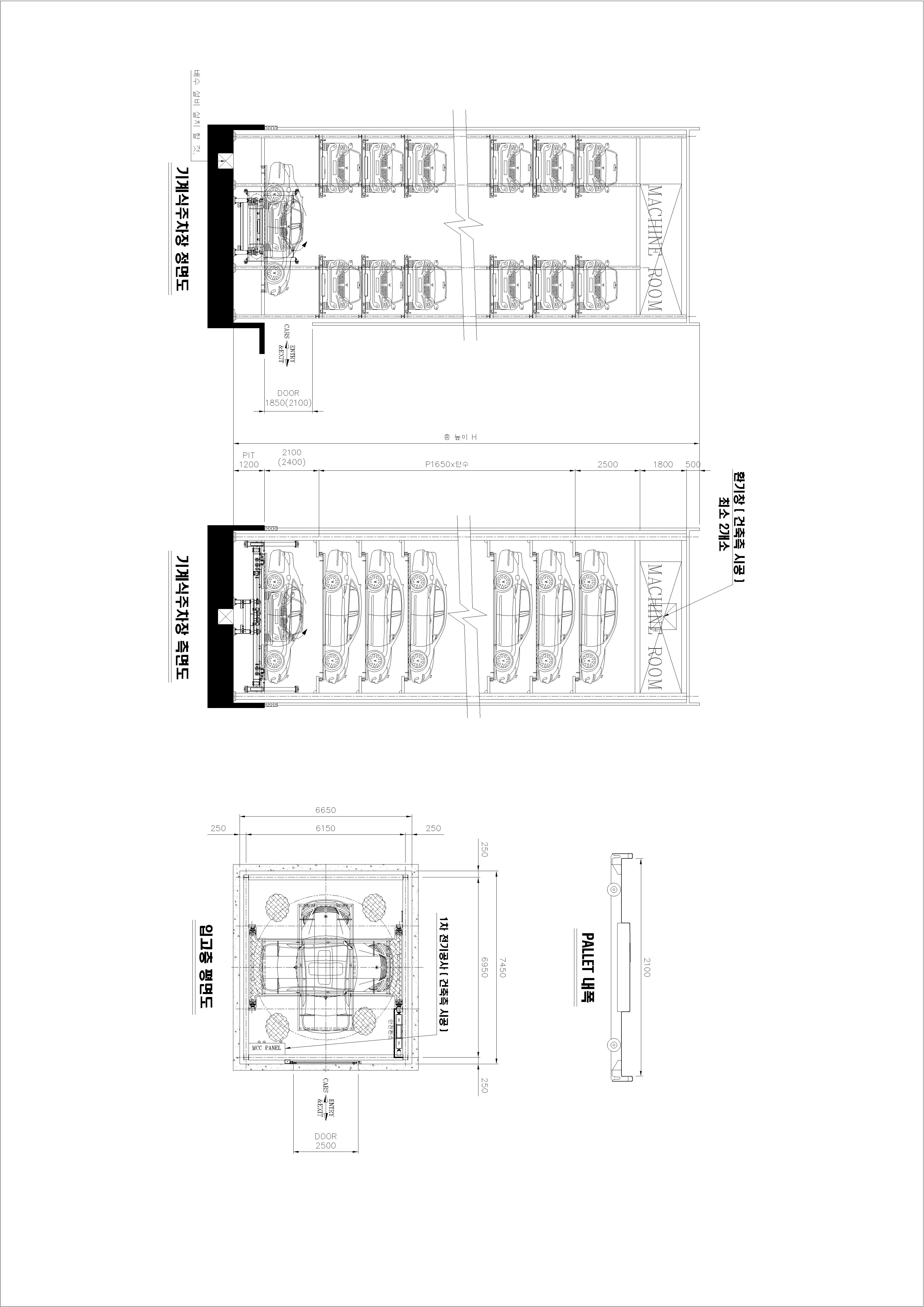

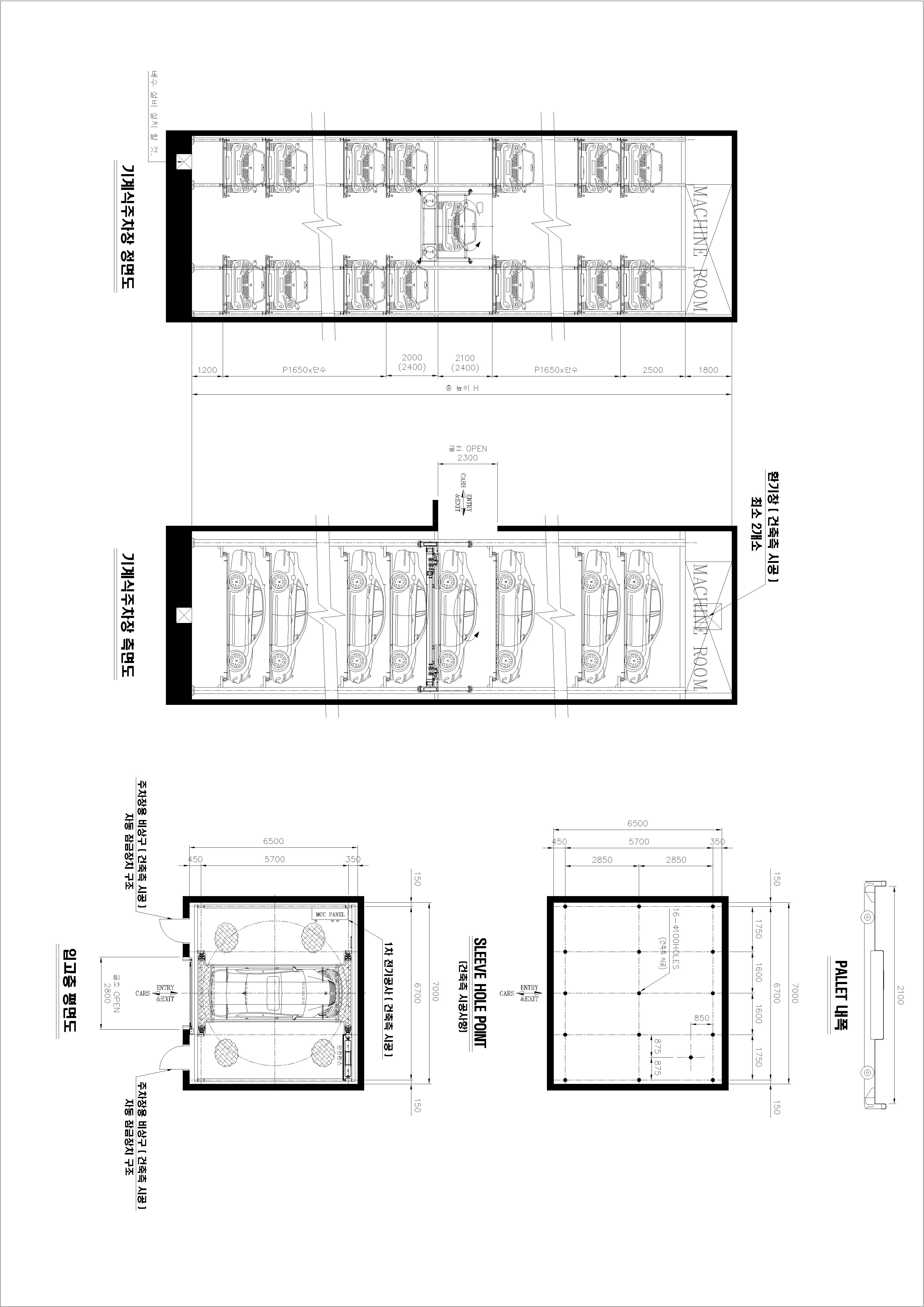

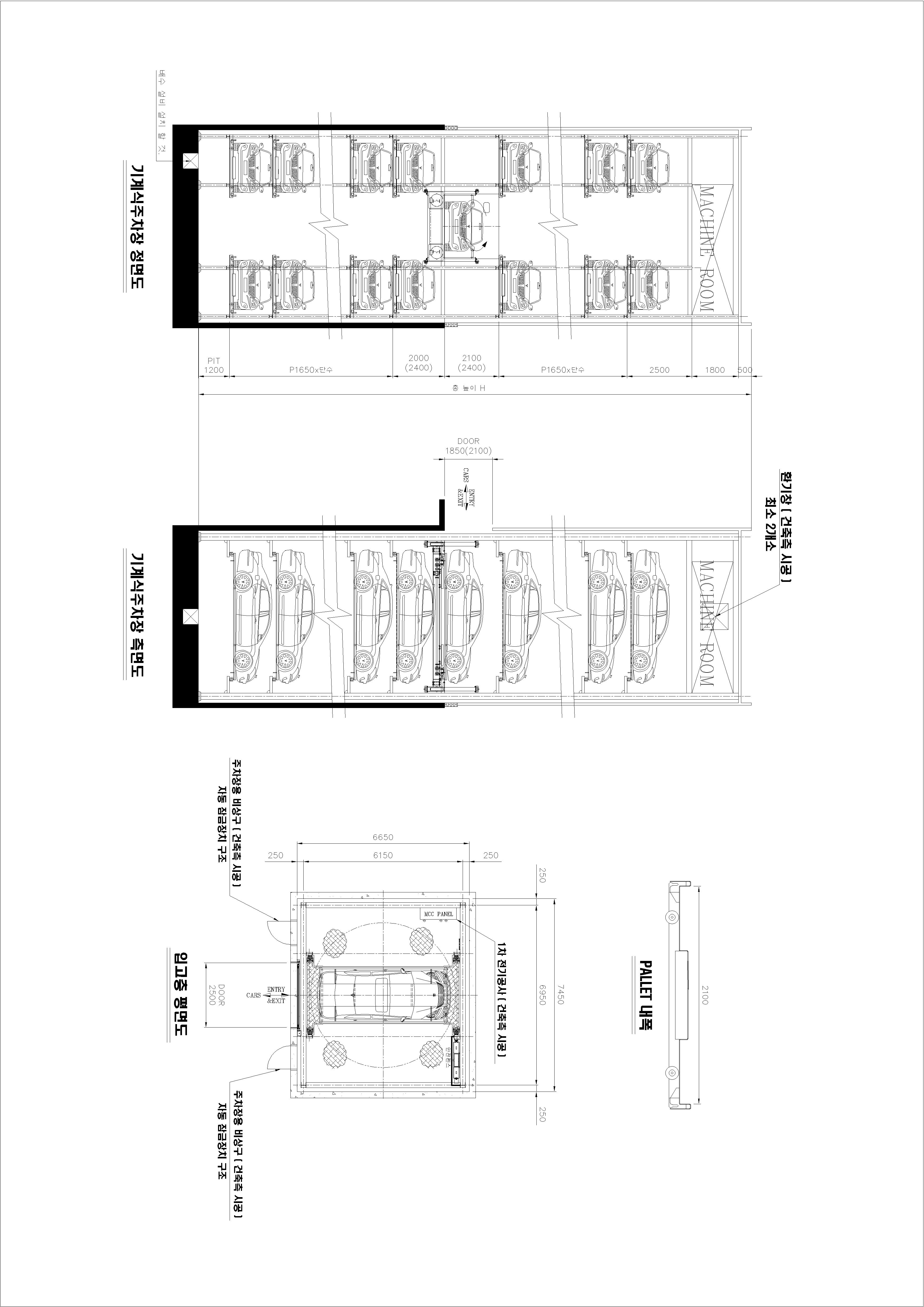

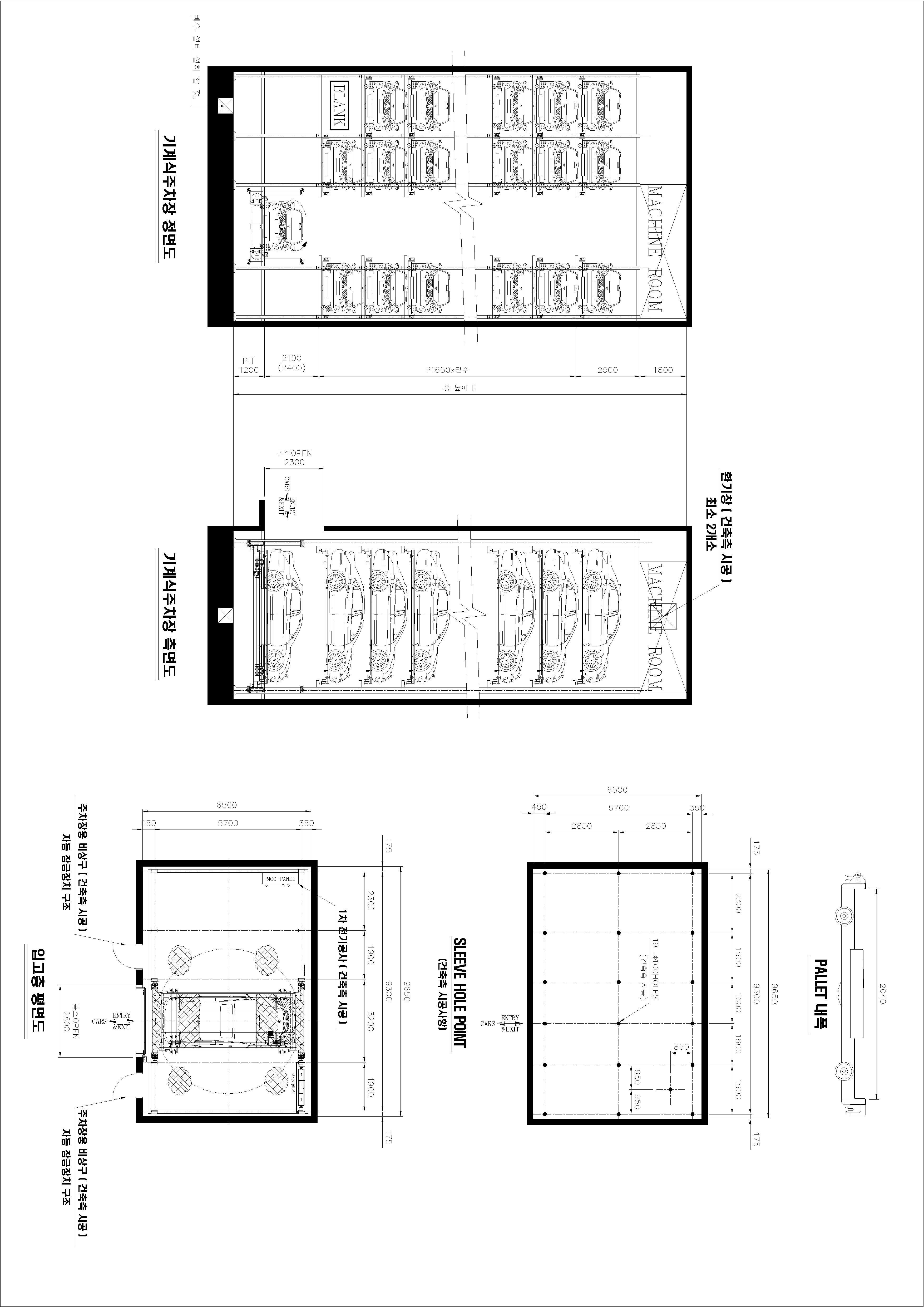

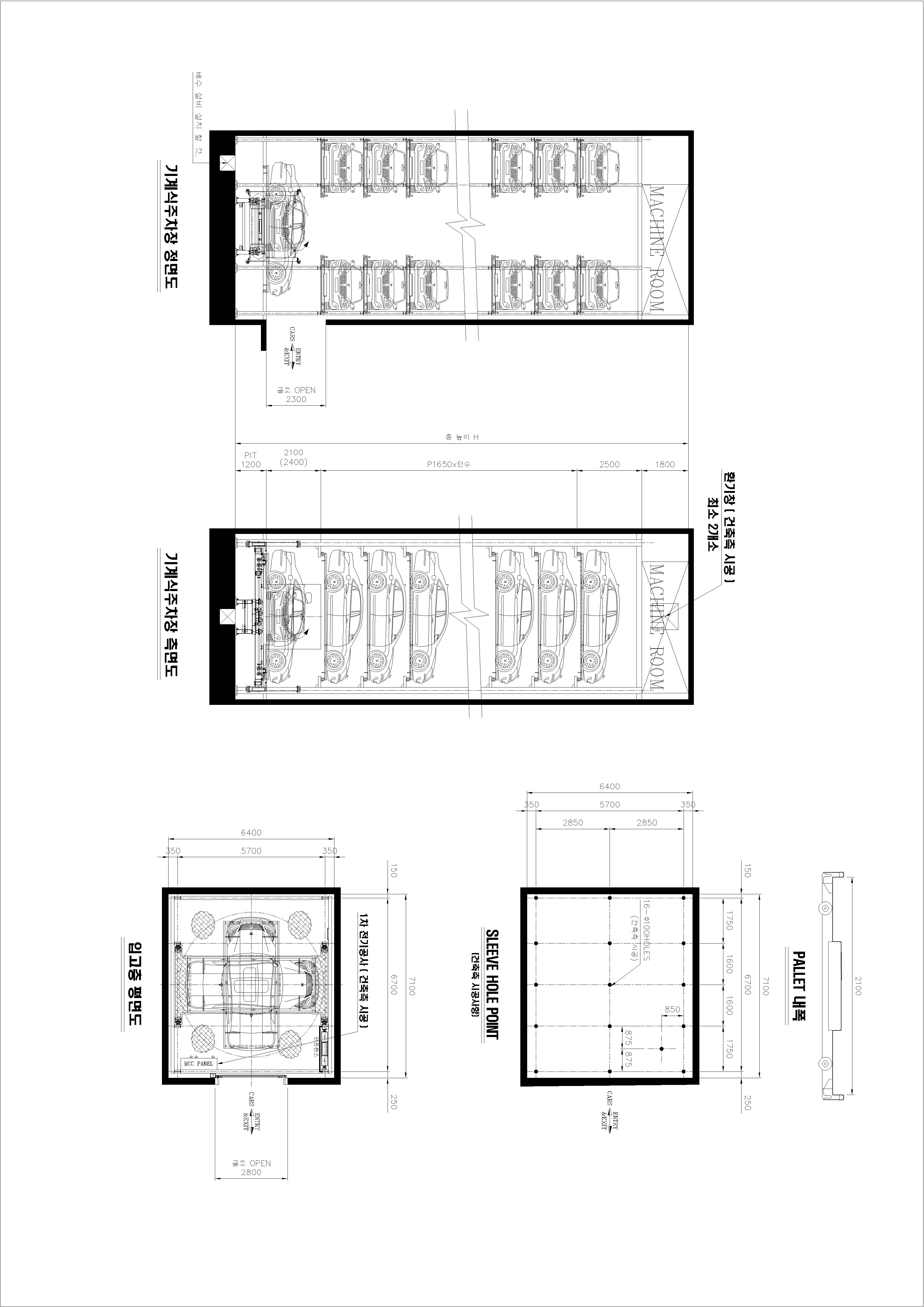

Standard Specifications for LV-SYSTEM

Building-Integrated Types

  • Bottom-entry type (180-degree turntable)
  • Mid-entry type (180-degree turntable)
  • Bottom-entry type (90-degree turntable)
  • Mid-entry type (90-degree turntable)
  • Bottom-entry type linked (180-degree turntable)
  • Mid-entry type linked (180-degree turntable)
  • Bottom-entry type low pit (180-degree turntable)
  • Bottom-entry type (180-degree turntable) _LV3
  • Bottom-entry type (180-degree turntable) _LV4

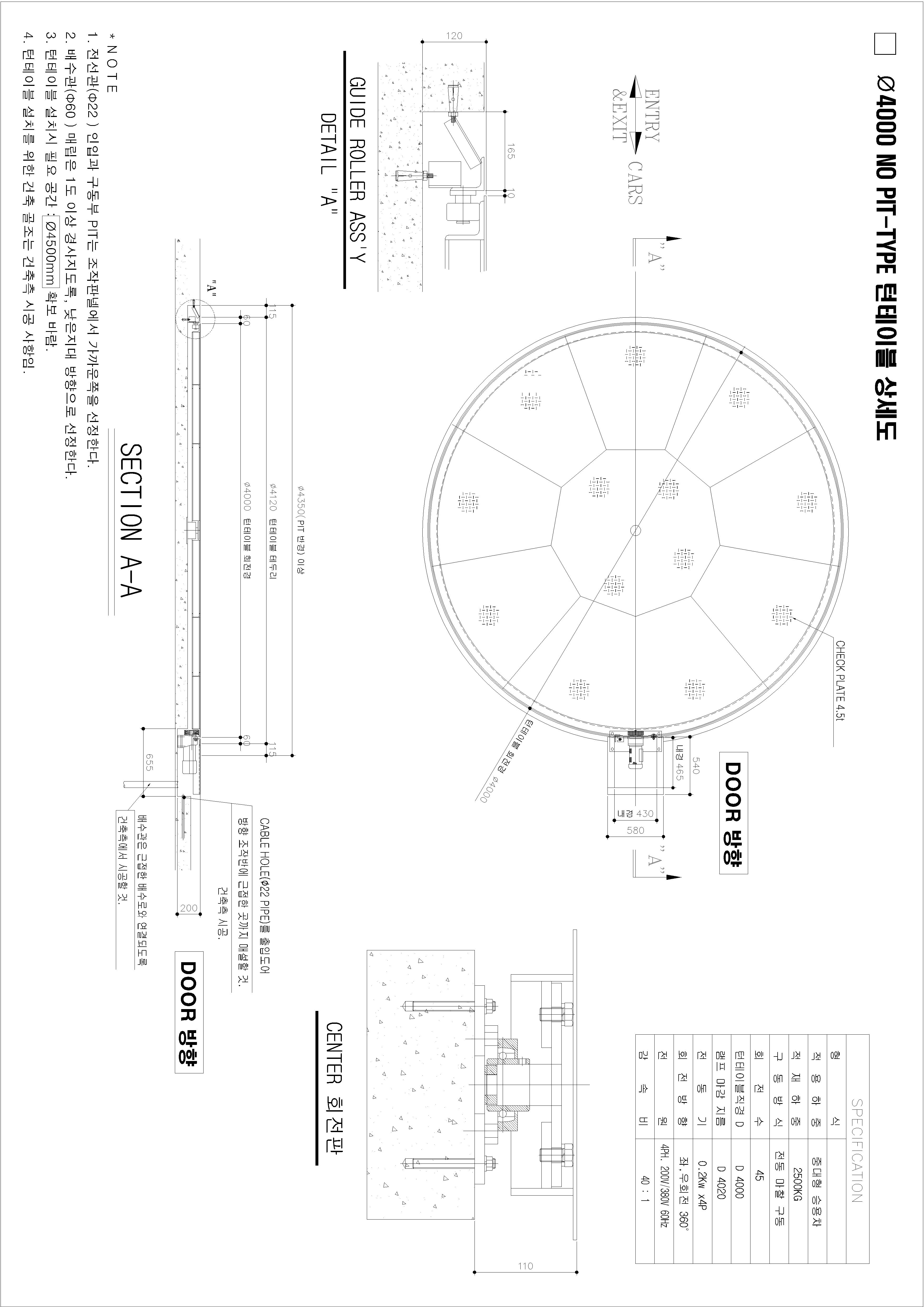

  • External turntable

Standalone tower types

  • Bottom-entry type (180-degree turntable)
  • Mid-entry type (180-degree turntable)
  • Bottom-entry type (90-degree turntable)
  • Mid-entry type (90-degree turntable)
  • Bottom-entry type linked (180-degree turntable)
  • Mid-entry type linked (180-degree turntable)
  • External turntable
